Polinovel

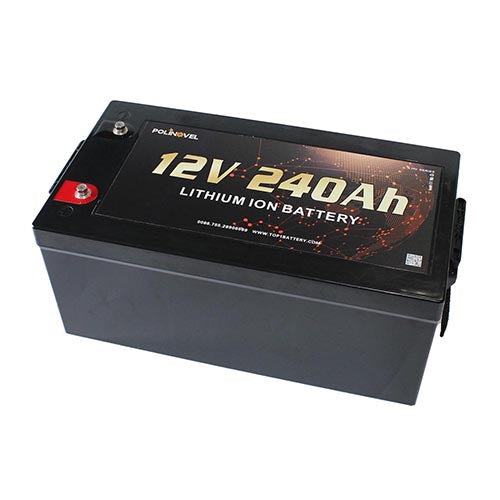

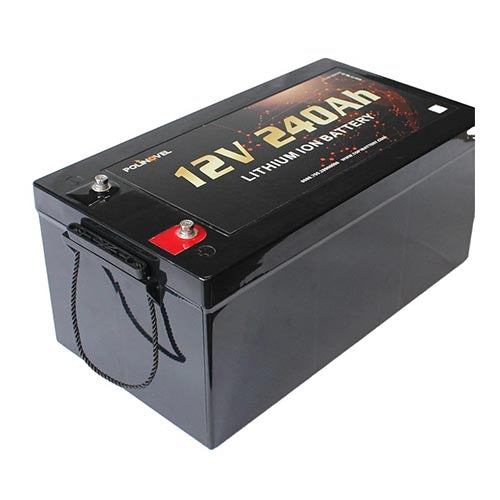

12V 240Ah Lithium Battery LiFePO4 HD Series

12V 240Ah Lithium Battery LiFePO4 HD Series

£850.00
£925.00 £850.00
Sale Sold out
Tax included. Shipping calculated at checkout.
BMS

HD12240(100)

Low stock: 1 left
View full details

12V 240AH LiFePO4 Lithium Battery (HD)

Model HD12240

◆ Longer life compare to lead acid battery

◆ Up to 60% weight saving

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed

OVERVIEW

Polinovel's HD series LiFePO4 lithium batteries are constructed with the best manufacturing techniques. Each LiFePO4 battery has an internal battery management system (BMS) that protects the battery against over charge, over discharge, short circuit, and high temperature. HD series LiFePO4 battery is truly maintenance free and is designed to give optimum performance for many years. Main uses are House leisure batteries in  boats, RV, vans, motorhome etc tougher operation environment.

FEATURES

HD series lithium battery using lifepo4 battery cells offer the following advantages:

◆ Longer life upto 8 x that of a lead acid battery

◆ Up to 60% weight saving compared to AGM Batteries.

◆ 100% usable capacity

◆ More energy with 1/3 smaller size

◆ Less than 3% self discharging per month

◆ Built in safety protection

◆ Zero maintenance

◆ Easy installation

◆ Eco-friendly

◆ Quality guaranteed



SPECIFICATIONS

Items Parameter
Battery Type LiFePO4
Nominal Voltage 12.8V
Nominal Capacity 240Ah
Energy 3.072KWh
Internal Resistance ≤20mΩ
Series & Parallel Application up to 4 series 4 parallel connected application
Limited Charge Voltage 14.6±0.2V
Floating Charge Voltage 13.8±0.2V
Charge Method CC/CV
Discharge Cut-off Voltage 10.0V
Standard Charge Current 50A (max charge current 80A)
Max. Continuous Discharge Current 100A
Pulse Discharge Current (<5s) 200A~400A
Cycle Life > 2000 cycles
Dimension Length: 525±2mm
Width: 270±2mm
Height: 220±2mm
Weight 32.5±0.2Kg
Operation Temperature Range Charge: 0~45℃;
Discharge: -20~60℃
Recommended operating temperature: 15℃~35℃
Self-Discharge Rate Residual capacity: ≤3%/month; ≤15%/years
Reversible capacity: ≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range Less than 1 month: -20℃~35℃, 45%RH~75%RH
Less than 3 months: -10℃~35℃, 45%RH~75%RH
Recommended storage environment: 15℃~35℃，45%RH~75%RH
